Product Overview

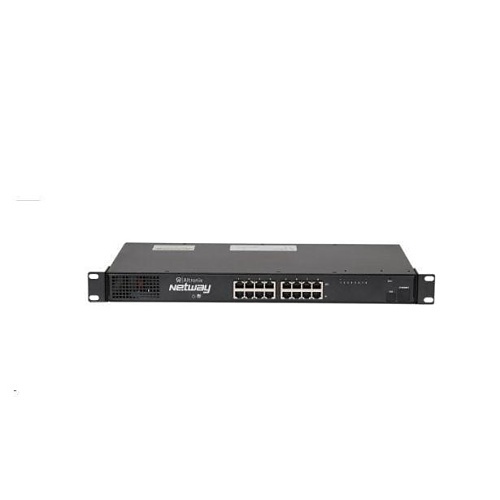

Altronix NetWay81G is an 8 port midspan in a 1U rack enclosure. It provides PoE/PoE (up to 30W power per port), and passes data at 10/100/1000 Mbps at distances up to 100m. Features also include an integral battery charger for applications requiring backup.
General Information
Name : Altronix NETWAY81G 8-Port PoE+ Midspan 240W Injector , Altronix
Category : PoE Devices
UPC Code : 782239971251
Country of Origin : United States. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : AX-NW81G
Manufacturer Part Number : NETWAY81G
Product Line : NetWay
Product Model : NETWAY81G
Product Series : NetWay
Product Type : PoE Injector
Technical Information
Output Voltage : 48-57V
Certifications
NDAA Compliant : Yes
Environmental Conditions
Operating Temperature (T-T) : -4-122°F
Storage Temperature (T-T) : -4-158°F
Interfaces/Ports
Output Ports : 8 x 10/100/1000Base-T
Physical Characteristics
Depth : 8.5"
Form Factor : Rack Mount
Height : 1.6"
Rack Height : 1U
Rack Width : 19"
Weight : 6.17lb
Width : 19.1"
Power Description
Frequency : 60 Hz
Input Voltage : 120V AC, 220V AC
Maximum Frequency : 60 Hz
Maximum Input Current : 3.25A
Maximum Output Power : 240W
Minimum Input Current : 2A
Power over Ethernet (PoE) : Yes
Product Information
Mount Type : Rack Mount
Miscellaneous
Environmental Certification : RoHS
